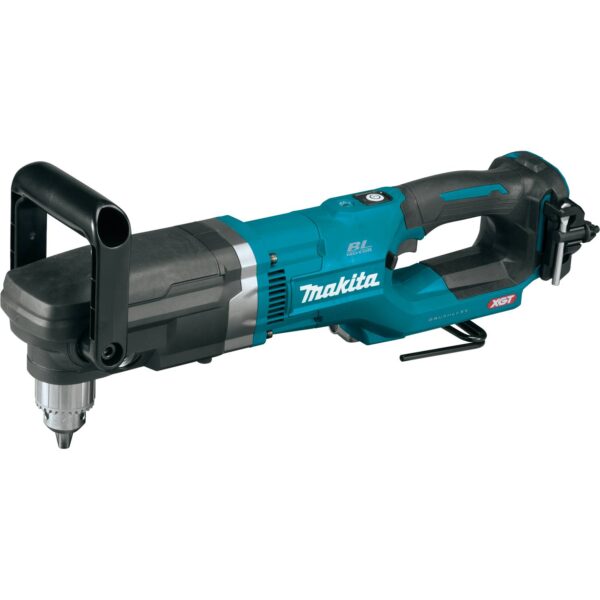

Makita XGT 40V ½” Chuck Right Angle Drill

Additional information

The 40V max XGT Brushless ½” Right Angle Drill (GAD01) offers freedom from the cord for demanding drilling applications. A Makita-built brushless motor, two-speed transmission, and variable speeds (0-350 RPM, 0-1,400 RPM), deliver for maximum efficiency and wide range of drilling applications. It can drill up to 6-1/4” holes with hole saws and 4-5/8” holes with self-feed bits.

Added features of the GAD01 drill include a torque limiter to reduce gear damage, soft start for smooth start-ups, an electric brake for maximum productivity, and dual L.E.D. lights to illuminate the work area. It includes a side handle which attaches to either side of the tool.

The drill features Extreme Protection Technology (XPT™), a series of integrated seals designed to improve a tool’s operation in harsh conditions. Water and solid debris that enter a tool are redirected through carefully engineered channels and ducts to prevent damage to key components, such as triggers, motors, and other electronics.

XGT is a system of equipment, tools, batteries, and chargers utilizing 40V max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the rest.

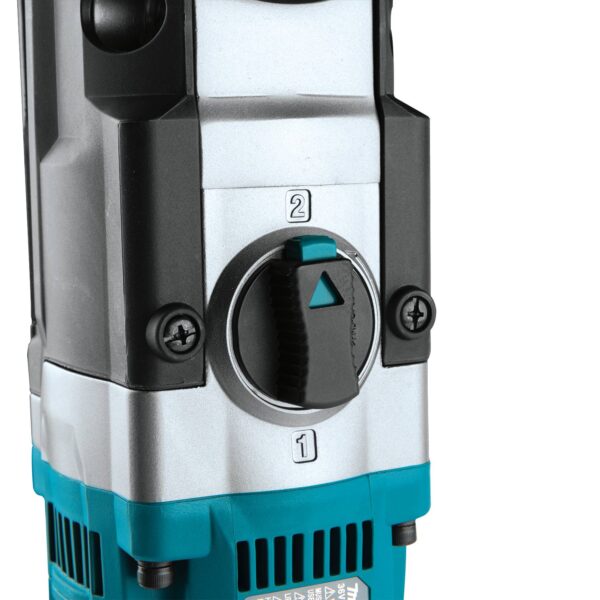

POWER : Makita-built brushless motor with two speed, variable speed (0-400 RPM and 0-1,500 RPM)
ERGONOMICS : Compact and lightweight design enables increased maneuverability

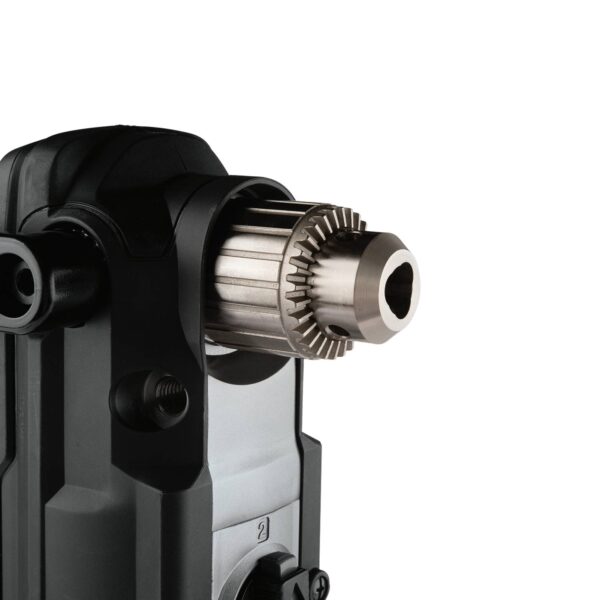

APPLICATIONS : 1/2" keyed chuck can be used with a variety of bits for drilling versatility
CONVENIENCE : Built-in L.E.D light with pre-glow and afterglow illuminates the work area

GAD01Z INCLUDES : Tool, with chuck key
GAD01M1 INCLUDES : Tool, (1) 40V max XGT® Lithium-Ion 4.0Ah battery, charger, chuck key

• Makita built brushless motor with two speed, variable speed (0-400 RPM and 0-1,500 RPM) for maximum efficiency and a wide range of drilling applications

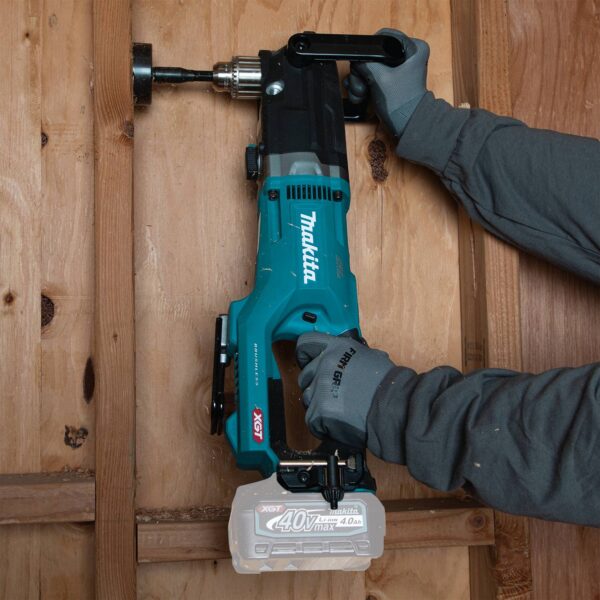

• Drills up to 6-1/4" holes with hole saws and 4-5/8" holes with self feed bits
• Weighs only 12.8 lbs. with battery and ergonomic design for operator comfort
• Torque limiter; built-in clutch reduces gear damage by disengaging gears if the bit binds
• Built-in L.E.D light with pre-glow and afterglow illuminates the work area
• Electric brake for maximum productivity
• Soft start feature for smooth start-ups
• Auto power-off feature preserves battery and tool life
• Includes chuck key with convenient on-tool storage
• Side handle attaches to either side of the tool for convenient right or left handed use
• Retractable tool hook secures the tool when not in use; optional tether can be attached to tool hook
• XPT™ is engineered to provide increased dust and water resistance in harsh jobsite conditions
• The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating
• XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
• XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications
• The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging
• The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)
• The XGT® Rapid Charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
• Compatible with Makita® 40V max XGT® Lithium-Ion Batteries
• Only use genuine Makita Batteries and Chargers
• 3-year limited warranty on tool, battery and charger

A NEW SYSTEM OF EQUIPMENT & TOOLS
XGT® is a new 40V | 80V max system of cordless equipment and tools. XGT® outpowers, outsmarts, and outlasts the rest. Through Makita’s innovative engineering, the technology within XGT® will lead to creating the equipment and tools of the future.

GET A COMPLETELY CORDLESS JOBSITE
The LXT® System handles most applications, but for high-demand applications that use corded, gas or air, the XGT System delivers higher-powered solutions. With 40V max and 80V max XGT® Products, pros can fully experience a battery-powered job site.

RARE EARTH MAGNETS & PURE COPPER WIRE
Rare earth magnets of the highest quality are engineered within the brushless motors to maximize power and performance.
Makita® XGT Products feature purpose-built brushless motors with more copper windings for increased power output.

BUILT-IN MICROCHIPS & DIGITAL COMMUNICATION
Built-in microchips in both tool and battery allow for real-time digital communication, actively monitoring heat, overload, and over-discharge.
Digital communication between XGT Tools and Batteries through enhanced digital communication technology optimize performance to deliver up to 2X longer sustained power during demanding applications.

IMPACT ABSORBENT STRUCTURE & WATER AND DUST RESISTANCE
Durable outer casing and cell holder create space within the battery to absorb impact.
Water and dust-resistant triple layer structure and an enhanced terminal structure are engineered to protect against water and dust for any job site condition.

MULTI-LAYER SURFACE CONTACTS & RAPID OPTIMUM CHARGING SYSTEM
Multi-layer surface contacts within tool and battery are designed to take on high current demands.
XGT Charger and Dual Cooling Fans digitally communicates before and during the charging process, evaluating battery condition to deliver a consistent fast charge. It even charges 18V LXT Batteries with an adapter.
