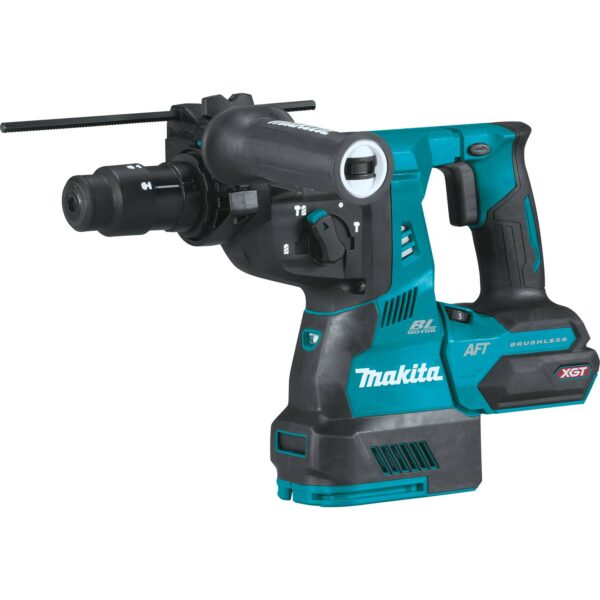

Makita XGT 40V 1-⅛” Rotary Hammer, SDS-PLUS Interchangeable Chuck
The Makita 40V max XGT® 1-1/8” AVT® Rotary Hammer with interchangeable chuck (GRH02) is a cordless concrete solution designed for heavy-load applications. The quick-change chuck allows the user to switch from SDS-PLUS bits to ½” keyless chuck to utilize straight shank bits. It delivers the power, speed, and run-time for corded demands, without the cord. XGT technology delivers up to 135 of 3/8” holes per charge when using one 40V max XGT 4.0Ah Battery. The Makita-built brushless motor delivers a full 2.8 ft. lbs. of impact energy, with 0-980 RPM and 0-5,000 BPM. Constant speed control automatically applies additional power under load for optimum performance.
XGT is a system of equipment, tools, batteries and chargers utilizing 40V max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the rest.
There are 2 feature models of the GRH02 Rotary Hammer. The choice is with or without one battery and rapid charger. Both models come with standard accessories of side handle, grease, and towel. Options for the Makita GRH02 are:
- GRH02Z: Tool only, with accessories
- GRH02M1: Tool, (1) 40V max XGT® Lithium-Ion 4.0Ah battery, rapid charger, tool bag, and accessories
- Additional information
- Description
- Features
- XGT 40V | 80V SYSTEM
- Video
Additional information
Options | GRH02Z: Tool only, GRH02M1: Tool, (1) XGT® 4.0Ah battery, charger, tool bag, |
---|
The Makita 40V max XGT® 1-1/8” AVT® Rotary Hammer with interchangeable chuck (GRH02) is a cordless concrete solution designed for heavy-load applications. The quick-change chuck allows the user to switch from SDS-PLUS bits to ½” keyless chuck to utilize straight shank bits. It delivers the power, speed, and run-time for corded demands, without the cord. XGT technology delivers up to 135 of 3/8” holes per charge when using one 40V max XGT 4.0Ah Battery. The Makita-built brushless motor delivers a full 2.8 ft. lbs. of impact energy, with 0-980 RPM and 0-5,000 BPM. Constant speed control automatically applies additional power under load for optimum performance.
The GRH02 features Active Feedback-Sensing Technology (AFT®), which electronically turns off the motor if rotation of bit is suddenly forced to stop, and Anti-Vibration Technology (AVT®), which is an internal counterbalance that moves counterweight pistons in the opposite direction of the drive piston to actively reduce vibration. In addition, the vibration-absorbing back handle and side handle further reduce vibration. For added durability in harsh job site conditions, Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance.
The Rotary Hammer has dust extraction capability with an OSHA Table 1 compliant on-board HEPA dust extractor attachment (sold separately). Additional performance features include an electric brake, variable speed dial, built-in L.E.D. light, and a retractable tool hook. It is ideal for a range of trades including mechanical/electrical/plumbing contractors, concrete contractors, road and bridge contractors, utility workers, pest control, maintenance operations, and more.
XGT is a system of equipment, tools, batteries and chargers utilizing 40V max lithium-ion batteries. XGT is engineered to deliver high power to take on high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features to outpower, outsmart and outlast the rest.
POWER : Makita brushless motor and 40V max XGT® battery deliver the power needed for heavy applications
VERSATILITY : Quick change chuck allows for interchangeability from SDS-PLUS to 1/2" keyless chuck
COMFORT : AVT® is a counterbalance system along with vibration-absorbing handles that work to reduce vibration
DUST MANAGEMENT : Dust extraction capability with OSHA Table 1 compliant on-board HEPA Dust Extractor
GRH02Z INCLUDES : Tool, side handle, grease, towel
GRH02M1 INCLUDES : Tool, (1) 40V max XGT® Lithium-Ion 4.0Ah battery, charger, side handle, grease, towel, tool case
- OUTPOWER: Makita-built brushless motor along with 40V max XGT® battery combine to deliver the power performance required for heavy-load application
- OUTSMART: Constant speed control automatically applies additional power under load for optimum performance
- OUTLAST: Overload protection is designed to protect the motor from burnout in abnormally high torque situations
- XGT® technology delivers up to 135 of 3/8" holes per charge using full charged 40V XGT® 4.0Ah battery*
- Quick change chuck allows for interchangeability from SDS-PLUS to 1/2" keyless chuck for utilization of straight shank bits
- Active Feedback-Sensing Technology (AFT®) electronically turns off the motor if rotation of bit is suddenly forced to stop
- Anti-Vibration Technology (AVT®) is an internal counterbalance system along with vibration-absorbing handles that work together to reduce vibration
- Dust extraction capability with OSHA Table 1 compliant on-board HEPA Dust Extractor or stand-alone AWS® Extractor options
- Auto-Start Wireless System (AWS®) which utilizes Bluetooth® technology for wireless power-on/off communication between tool and dust extractor (AWS® Transmitter sold separately)
- Electric brake allows the tool to be repositioned faster for maximum productivity
- Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears during a bind-up situation
- Variable speed dial and trigger enables user to match the speed to the application

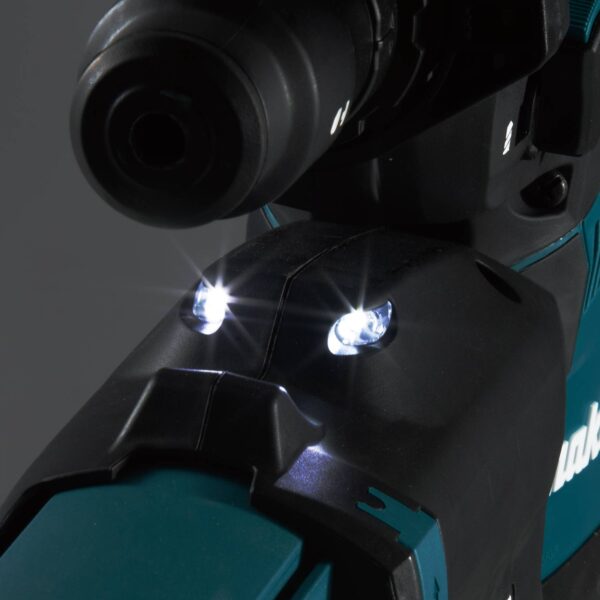

- Built-in L.E.D. light with an independent on/off illuminates the work area
- Ergonomic soft-grip handle and large 2-finger trigger provide increased comfort on the job
- 3-mode operation for "Rotation Only", "Hammering with Rotation" or "Hammering Only" for multiple applications
- Retractable tool hook secures the tool when not in use
- Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions
- The digital communication within XGT® optimizes performance to provide up to 2X longer sustained power under heavy-load applications
- The digital communication within XGT® actively monitors and protects against overload, over-discharge and overheating
- XGT® Tools and Batteries are designed with a multi-layer contact interface for more constant power delivery to take on high-current demands
- XGT® Batteries feature rigid rails with impact-resistant construction to secure the battery to the tool during high-demand applications
- The XGT® Rapid Charger with dual-fan design circulates air through the battery to cool the battery and circuit board quickly for faster charging
- The XGT® Rapid Charger’s digital display indicates battery charge level (-80%, +80%, 100%)
- The XGT® Rapid Charger’s built-in chip thoroughly communicates during the charging process to control current, voltage, and temperature for more efficient charging
- 40V max XGT® Lithium-Ion 4.0Ah Battery (BL1840) reaches a full charge in 45 minutes or less
- Compatible with Makita® 40V max XGT® Lithium-Ion Batteries
- Only use genuine Makita batteries and chargers
- 3-year limited warranty on tool, battery and charger
A NEW SYSTEM OF EQUIPMENT & TOOLS
XGT® is a new 40V | 80V max system of cordless equipment and tools. XGT® outpowers, outsmarts, and outlasts the rest. Through Makita’s innovative engineering, the technology within XGT® will lead to creating the equipment and tools of the future.
GET A COMPLETELY CORDLESS JOBSITE
The LXT® System handles most applications, but for high-demand applications that use corded, gas or air, the XGT System delivers higher-powered solutions. With 40V max and 80V max XGT® Products, pros can fully experience a battery-powered job site.
RARE EARTH MAGNETS & PURE COPPER WIRE
Rare earth magnets of the highest quality are engineered within the brushless motors to maximize power and performance.
Makita® XGT Products feature purpose-built brushless motors with more copper windings for increased power output.
BUILT-IN MICROCHIPS & DIGITAL COMMUNICATION
Built-in microchips in both tool and battery allow for real-time digital communication, actively monitoring heat, overload, and over-discharge.
Digital communication between XGT Tools and Batteries through enhanced digital communication technology optimize performance to deliver up to 2X longer sustained power during demanding applications.
IMPACT ABSORBENT STRUCTURE & WATER AND DUST RESISTANCE
Durable outer casing and cell holder create space within the battery to absorb impact.
Water and dust-resistant triple layer structure and an enhanced terminal structure are engineered to protect against water and dust for any job site condition.
MULTI-LAYER SURFACE CONTACTS & RAPID OPTIMUM CHARGING SYSTEM
Multi-layer surface contacts within tool and battery are designed to take on high current demands.
XGT Charger and Dual Cooling Fans digitally communicates before and during the charging process, evaluating battery condition to deliver a consistent fast charge. It even charges 18V LXT Batteries with an adapter.
