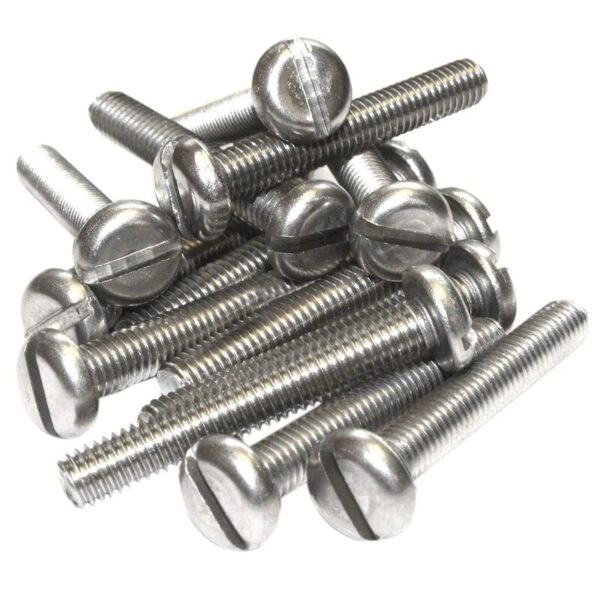

Machine Screws

Machine screws are meant to hold two metal work pieces together, with the use of a threaded pre-tapped hole, or through a hole and held with a nut. They are threaded the entire length of the shank. For most styles of a machine screw, the length is measured from under the head to the end of the screw. For flat head machine screws, since they are intended to fit into a countersunk hole, their length is measured from the top of the screw head to the end of the screw.

Clear
SKU: N/A Category: Tags: , ,
  • Description
  • Additional information
  • Description

Description

#6-32 X 3/16 PHIL PAN M/S SS

Additional information

Drive Type

Phillips, Slotted, Combo, Hex Driver, Torx

Head Style

Round, Pan, Flat, Oval, Truss, Hex Head, Hex Washer Head

Material / Finish

Zinc Plated, Stainless Steel 18-8, Stainless Steel 316, Brass, Aluminum

Diameter

#2-56, #3-48, #4-40, #5-40, #6-32, #8-32, #10-24, #10-32, #12-24, 1/4″-20, 1/2″-13, 5/16″-18, 3/8″-16

Length

3/16″, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1-1/8″, 1-1/4″, 1-1/2″, 1-3/4″, 2″, 2-1/4″, 2-1/2″, 2-3/4″, 2-7/8″, 3″, 3-1/2″, 3-1/4″, 4″, 4-1/2″, 5″, 5-1/2″, 6″

Machine screws are meant to hold two metal work pieces together, with the use of a threaded pre-tapped hole, or through a hole and held with a nut. They are threaded the entire length of the shank. For most styles of a machine screw, the length is measured from under the head to the end of the screw. For flat head machine screws, since they are intended to fit into a countersunk hole, their length is measured from the top of the screw head to the end of the screw.
